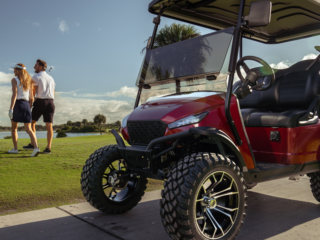

MadJax Build Your Own
GolfCartMadness

GENERAL

DIMENSIONS

BODY & CHASSIS

FRAME Welded Steel with Hot Dipped Galvanized Protection
BODY & FINISH Injection Molded Polypropylene

POWER

POWER 48-Volt Lithium or Lead Acid
MOTOR TYPE Reliance AC Motor
HORSEPOWER (KW) 6.7 hp (5 kW) Continuous
WIRING 3 Gauge Wiring
DC CONVERTER 30 Amp Reliance Voltage Reducer for 12 Volt Power
BATTERIES (QTY/TYPE) Reliance 48V Lithium or 6 x 8v Batteries
KEY OR PEDAL START Pedal
BATTERY CHARGER Reliance On-Board Charger w/3.0 m AC Cord
SPEED CONTROLLER 400-Amp Reliance Solid-State AC Controller
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Open Differential with Helical Gears
GEAR SELECTION Forward-Neutral-Reverse Rotary Style Switch
REAR AXLE RATIO 12.3: 1

STEERING & SUSPENSION

STEERING Double-Ended Rack and Pinion
FRONT SUSPENSION MacPherson Strut
REAR SUSPENSION Mono-Leaf Springs with Hydraulic Shocks
SERVICE BRAKE Front/Rear Hydraulic Disc Brake
PARKING BRAKE Electromagnetic Park Brake
DRY WEIGHT 573 lb (260 kg)(without battery estimated)
CURB WEIGHT* 992 lb (450 kg) estimated for 4 pass
VEHICLE LOAD CAPACITY 800 lb (363kg)
OUTSIDE CLEARANCE CIRCLE 22.9 ft (7 m)
SPEED (LEVEL GROUND) 19.5 mph
